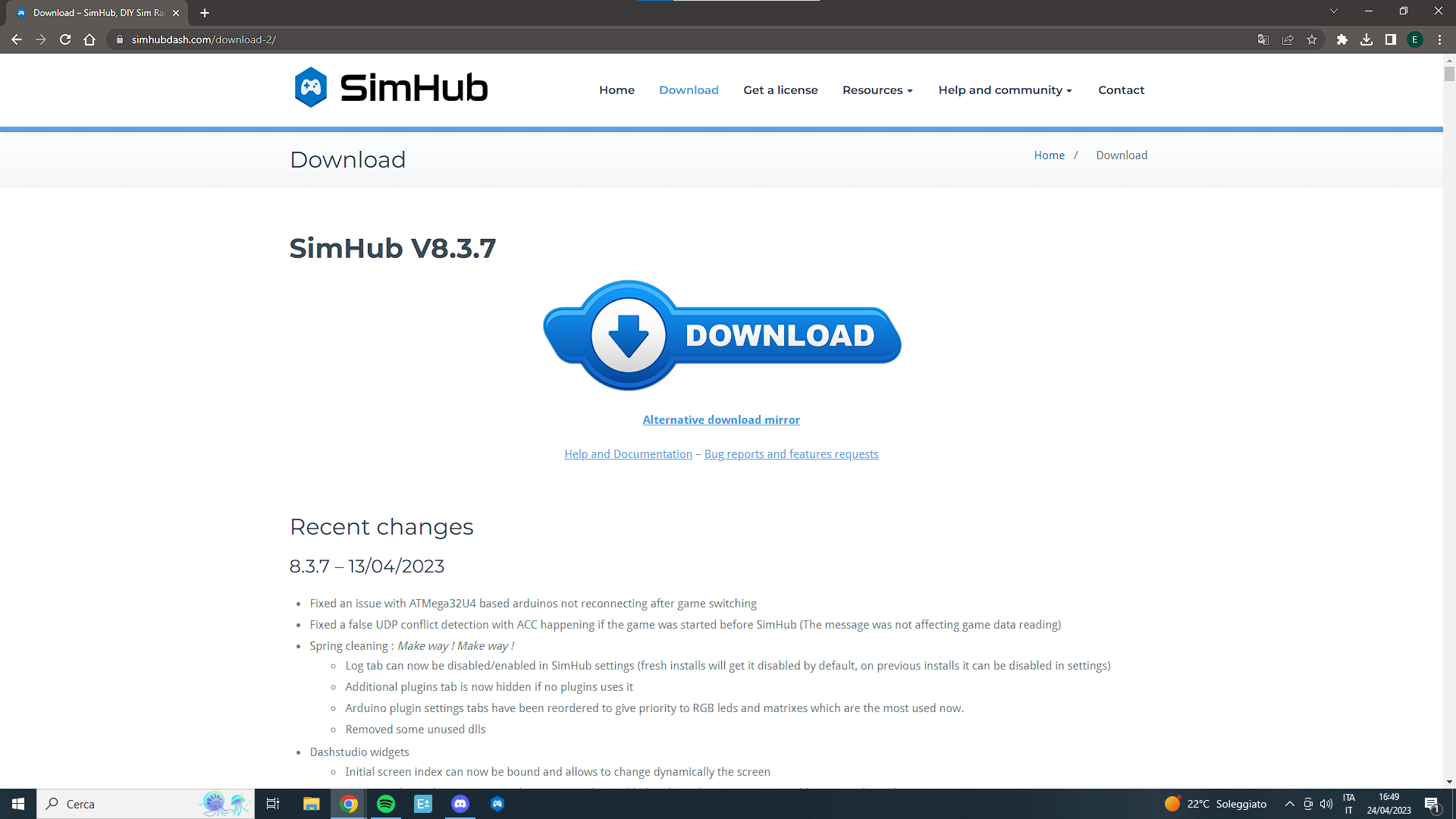

Step 1 · Install or update SimHub
Download and install the current version of SimHub from the official link.
BRG · Setup guide
Set up your BRG Rev Lights
Choose your LED configuration to view its complete setup guide.
Prepare SimHub

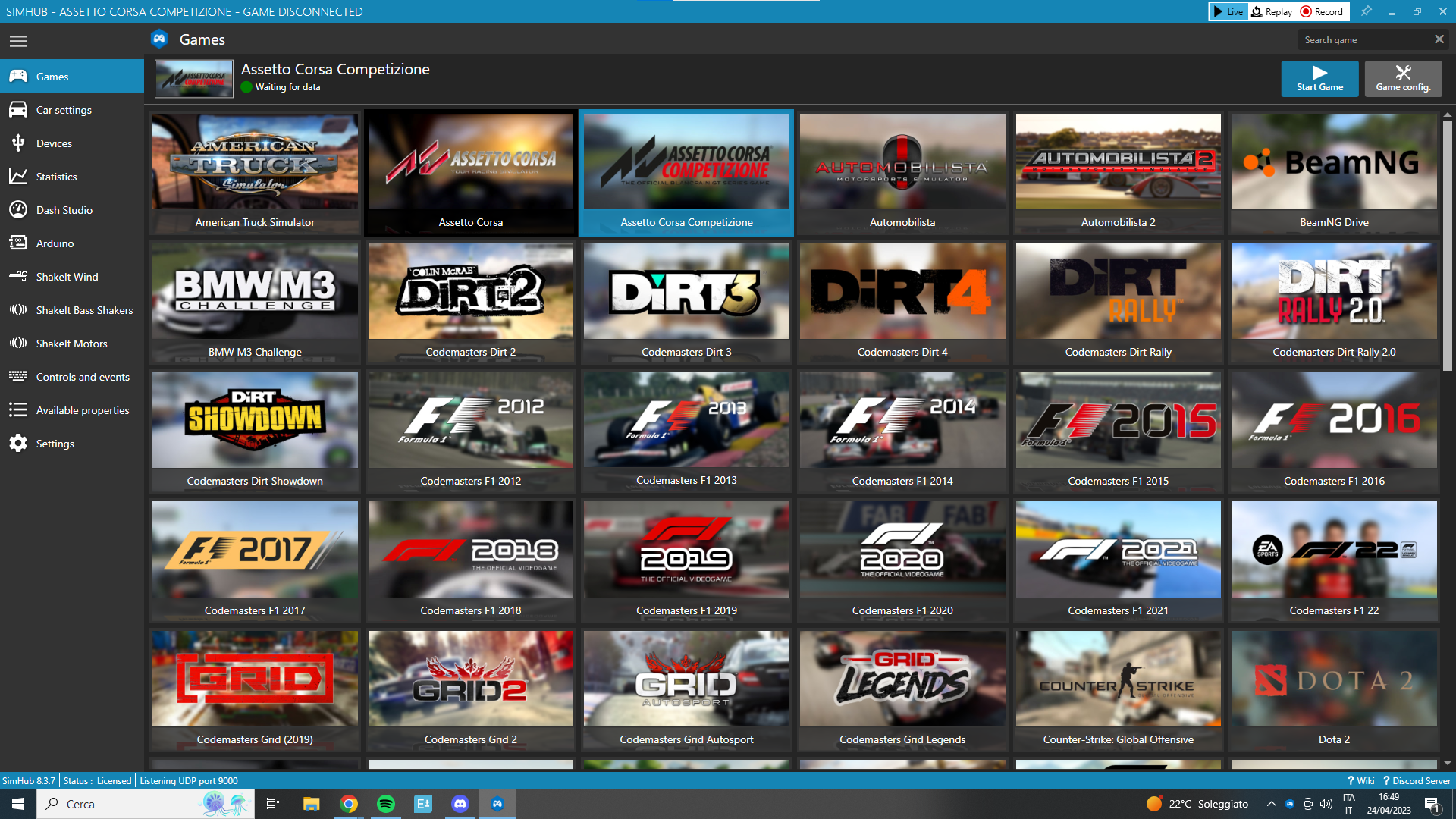

Step 2 · Open SimHub and connect your lights
Connect your LED bar to your PC using the supplied USB connection, then open SimHub.
Import the BRG profile

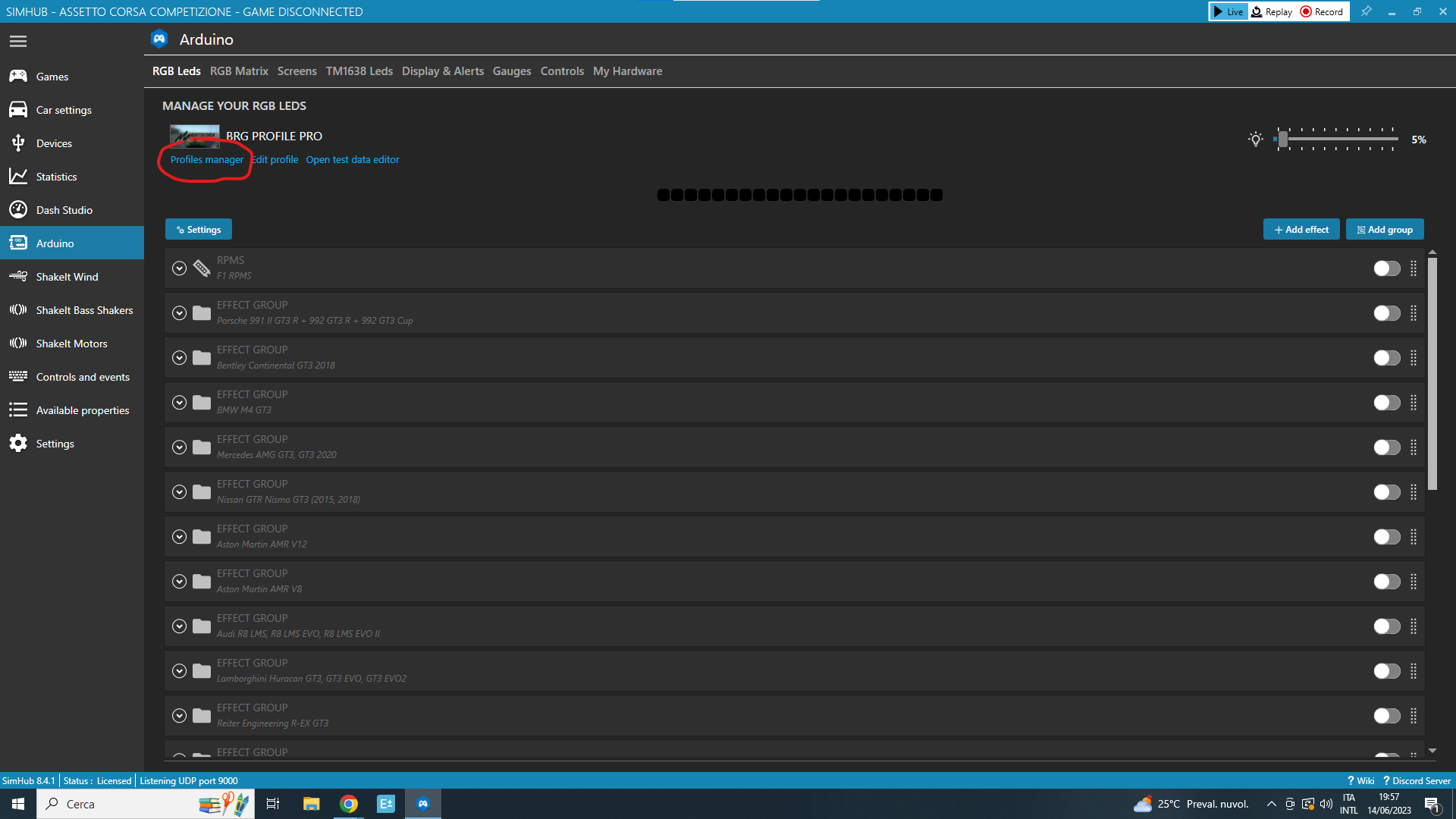

Step 3 · Open the profile manager
Click Arduino > RGB LEDs, then open Profiles manager.

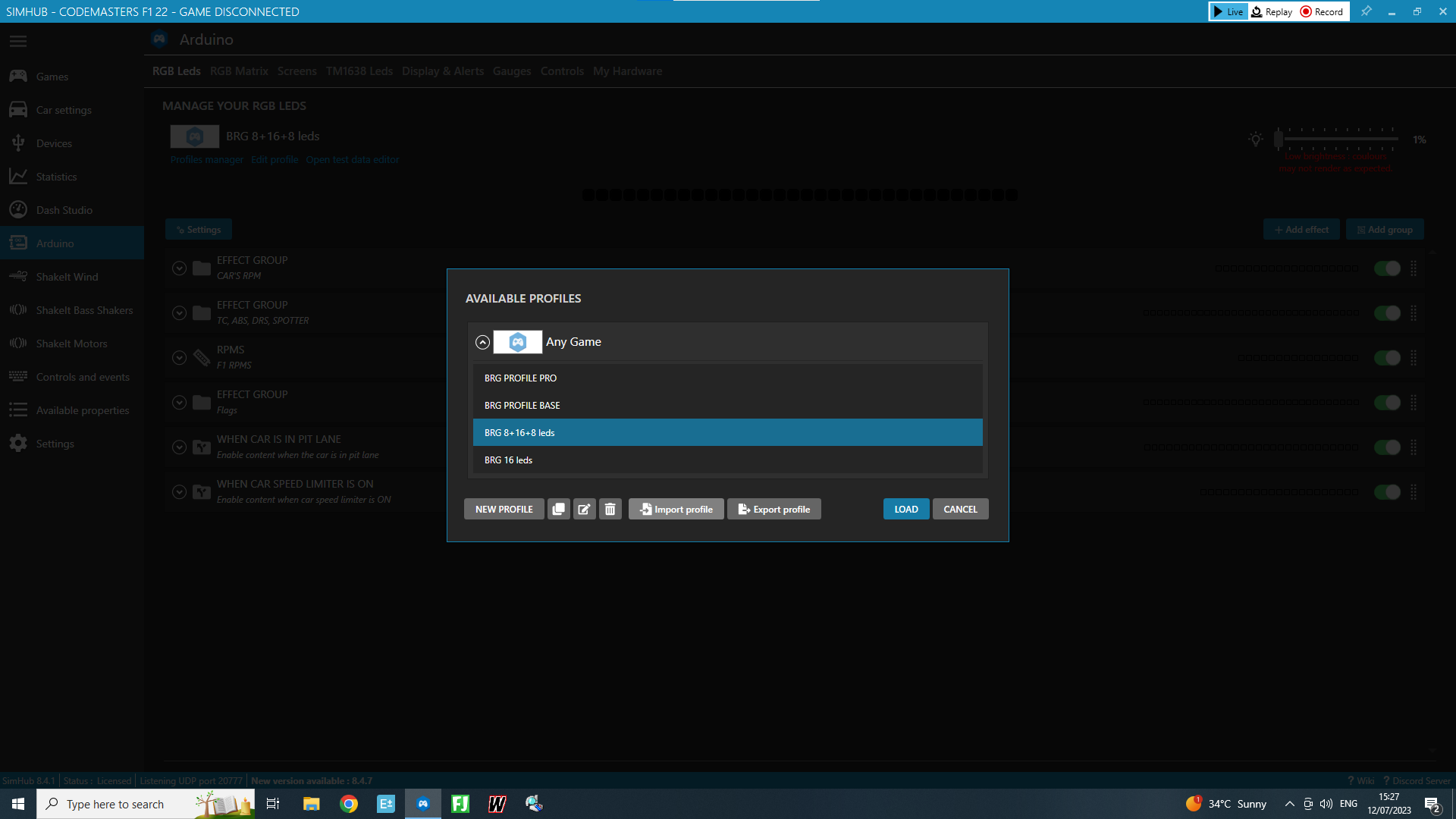

Step 4 · Import the profile
Click Import profile. Select the extracted Any Game - BRG 16 leds (or 8+8) (1).ledsprofile file and confirm the import.
Step 5 · Load the correct profile
Select the imported BRG 16 leds (or 8+8) profile and click Load. Use this profile for your 16 LEDs setup; do not load the other configuration profile.
Connect and configure your lights

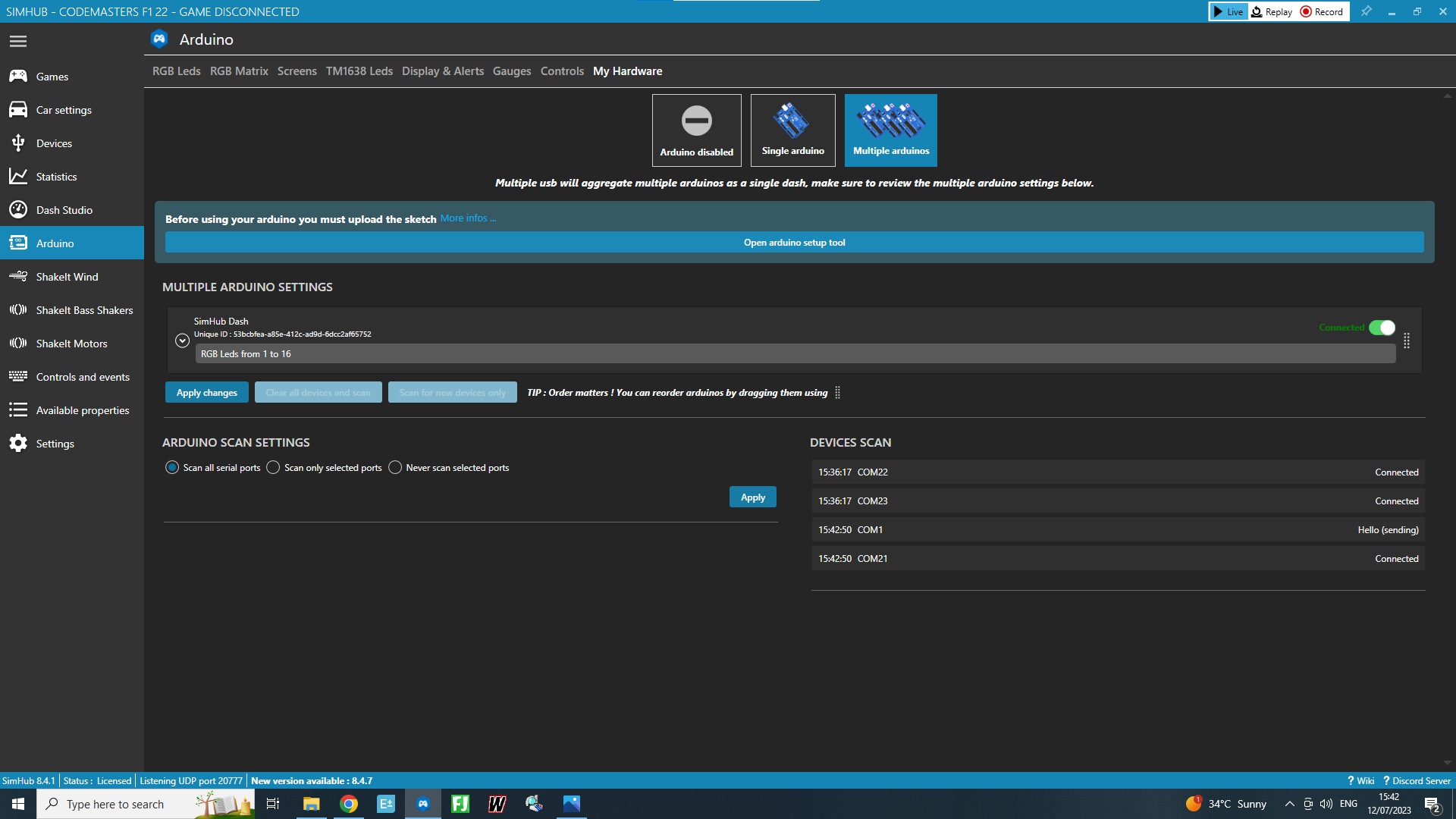

Step 6 · Scan for your devices
Open Arduino > My Hardware, click Scan for new devices only and wait for your 1 LED device to connect.
Step 7 · Check the device count and order
Confirm that your connected LED device has 16 LEDs. This setup uses one 16-LED bar, not three devices. The screenshot shows the device-connection area from a two-bar setup; check only your single device.
Step 8 · Personalize the LED effects
The BRG profile provides a starting setup. In RGB LEDs, you can adjust colors, brightness and effects to suit your preferences. Available telemetry effects depend on the game and can include RPM, flags, fuel alerts and spotter information.
Start your game and test

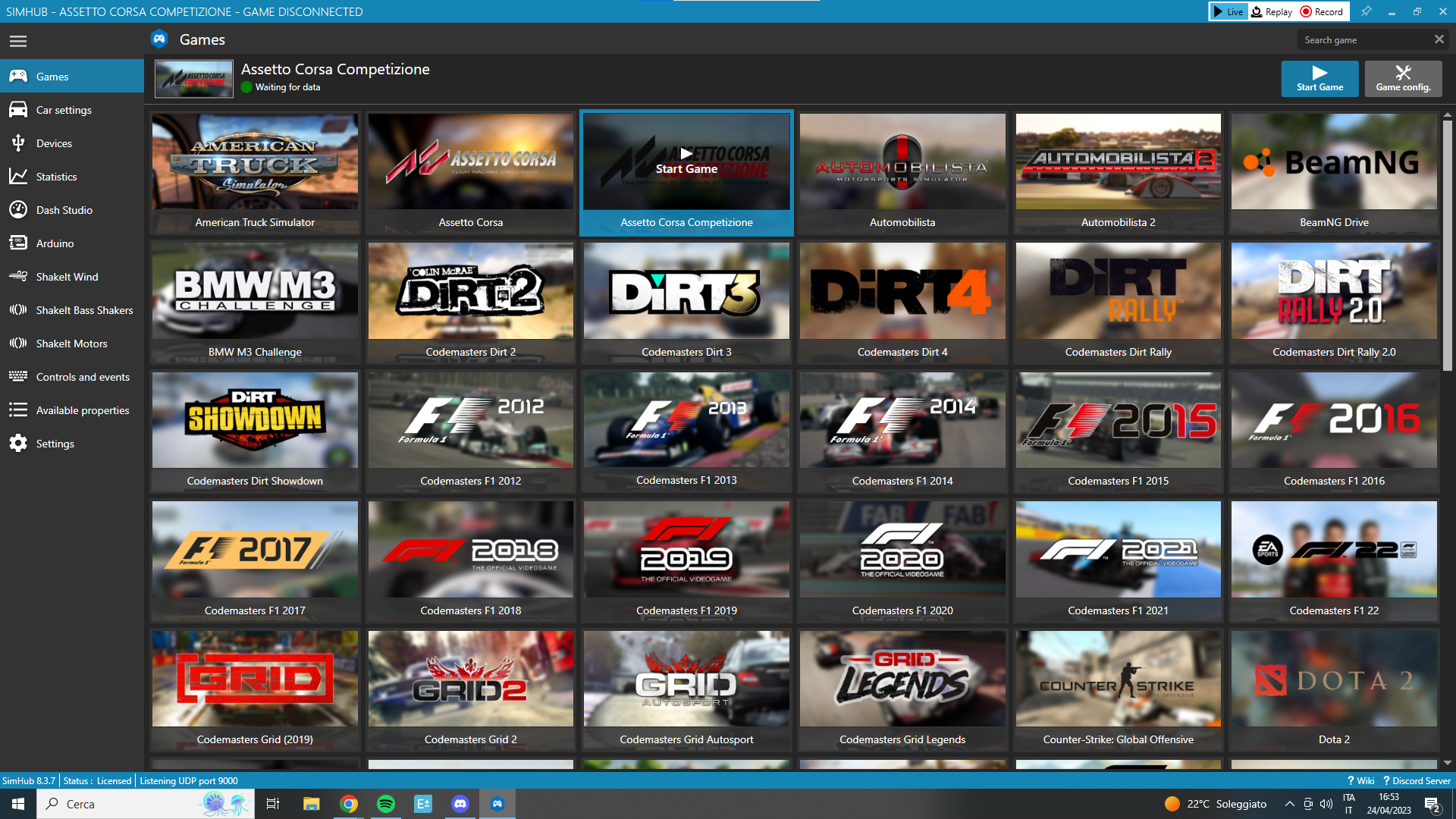

Step 9 · Choose your game
Open Games and choose the game you want to use. Follow any configuration prompts shown by SimHub.
Step 10 · Check the LEDs in a game session
Start a game session and confirm that the LEDs respond to telemetry. If some LEDs do not respond, check that the correct profile is loaded and that every device is connected with the expected LED count.
Prepare SimHub
Step 1 · Install or update SimHub
Download and install the current version of SimHub from the official link.
Step 2 · Open SimHub and connect your lights
Connect your LED bars to your PC using the supplied USB connection, then open SimHub.
Import the BRG profile
Step 3 · Open the profile manager
Click Arduino > RGB LEDs, then open Profiles manager.
Step 4 · Import the profile
Click Import profile. Select the extracted Any Game - BRG 16 leds (or 8+8) (1).ledsprofile file and confirm the import.
Step 5 · Load the correct profile
Select the imported BRG 16 leds (or 8+8) profile and click Load. Use this profile for your 8 + 8 LEDs setup; do not load the other configuration profile.
Connect and configure your lights
Step 6 · Scan for your devices
Open Arduino > My Hardware, click Scan for new devices only and wait for your 2 LED devices to connect.
Step 7 · Check the device count and order
Confirm that both connected devices have 8 LEDs each and appear in the order you want for the first and second half of the 16-LED profile. Reorder the device rows with the drag handles if required.
Step 8 · Personalize the LED effects
The BRG profile provides a starting setup. In RGB LEDs, you can adjust colors, brightness and effects to suit your preferences. Available telemetry effects depend on the game and can include RPM, flags, fuel alerts and spotter information.
Start your game and test
Step 9 · Choose your game
Open Games and choose the game you want to use. Follow any configuration prompts shown by SimHub.
Step 10 · Check the LEDs in a game session
Start a game session and confirm that the LEDs respond to telemetry. If some LEDs do not respond, check that the correct profile is loaded and that every device is connected with the expected LED count.
Prepare SimHub
Step 1 · Install or update SimHub
Download and install the current version of SimHub from the official link.
Step 2 · Open SimHub and connect your lights
Connect your LED bars to your PC using the supplied USB connection, then open SimHub.
Import the BRG profile
Step 3 · Open the profile manager
Click Arduino > RGB LEDs, then open Profiles manager.
Step 4 · Import the profile
Click Import profile. Select the extracted BRG 8+16+8 leds (1).ledsprofile file and confirm the import.
Step 5 · Load the correct profile
Select the imported BRG 8+16+8 leds profile and click Load. Use this profile for your 8 + 16 + 8 LEDs setup; do not load the other configuration profile.
Connect and configure your lights
Step 6 · Scan for your devices
Open Arduino > My Hardware, click Scan for new devices only and wait for your 3 LED devices to connect.

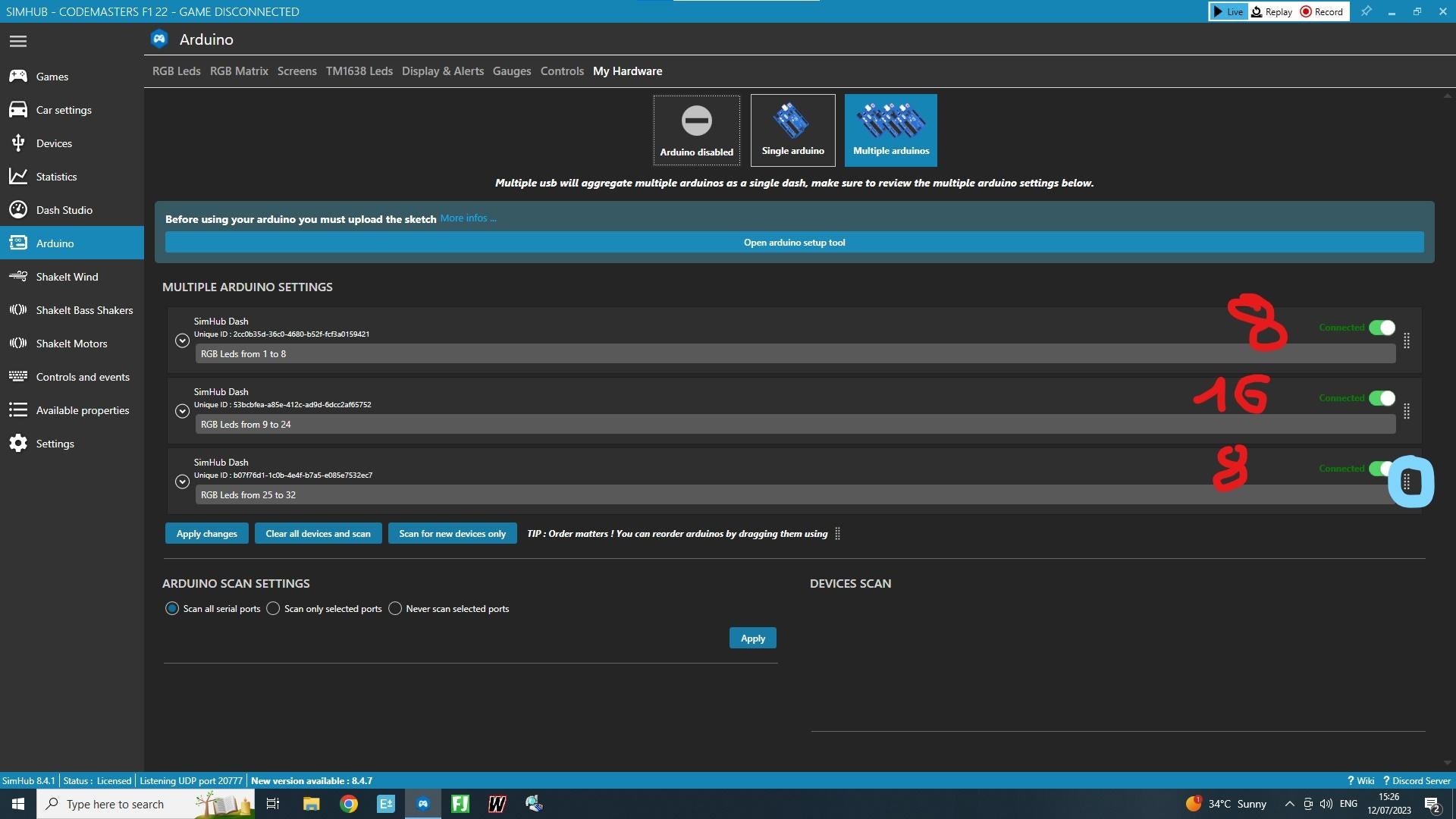

Step 7 · Check the device count and order
Arrange the three connected devices in this exact order: 8 LEDs, 16 LEDs, 8 LEDs. If the rows are in a different order, drag them using the handles shown in the screenshot.
Step 8 · Personalize the LED effects
The BRG profile provides a starting setup. In RGB LEDs, you can adjust colors, brightness and effects to suit your preferences. Available telemetry effects depend on the game and can include RPM, flags, fuel alerts and spotter information.
Start your game and test
Step 9 · Choose your game
Open Games and choose the game you want to use. Follow any configuration prompts shown by SimHub.
Step 10 · Check the LEDs in a game session
Start a game session and confirm that the LEDs respond to telemetry. If some LEDs do not respond, check that the correct profile is loaded and that every device is connected with the expected LED count and 8 / 16 / 8 order.
